Ultimaker S5
฿261,450
Description

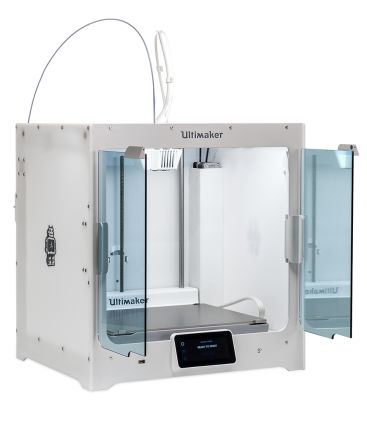

Ultimaker S5
Powerful, reliable, versatile 3D printing
Discover the easy-to-use desktop 3D printer with a large build volume that delivers accurate, industrial-grade parts, time and again. With simple setup, high uptime, and reliable dual extrusion, Ultimaker S5 is the complete professional 3D printing solution.
Features summary
The Ultimaker S5 is built to run continuously and maximize uptime. Its best-in-class technical specifications deliver performance you can rely on. Designed for your success, the Ultimaker S5 is part of the complete Ultimaker 3D printing solution – one trusted by hundreds of thousands of professionals worldwide.
-
Large build volume: 330 x 240 x 300 mm (13 x 9.4 x 11.8 inches)
-
Compatible with high-strength glass and carbon fiber filament
-
Down to 20 micron (0.001 inch) layer resolution
-
Open filament system – print with any 2.85 mm material
-
4.7-inch touchscreen interface – Winner of iF Design Award 2019
Dimensions
Dual Extrusiom Build Volume:
- 330 x 240 x 300 mm
- (13 x 9.4 x 11.8 inches)
Assembled dimensions
- 495 x 585 x 780 mm
- (19.5 x 23 x 30.7 inches)
Print technology
- Fused filament fabrication (FFF)
Compatible filament diameter
- 2.85 mm
Weight
- 20.6 kg (45.4 lbs)
Maximum power output
- 500 W
Printer Properties
Layer Resolution
- 0.25 mm nozzle: 150 - 60 micron
- 0.4 mm nozzle: 200 - 20 micron
- 0.6 mm nozzle: 300 - 20 micron
- 0.8 mm nozzle: 600 - 20 micron
XYZ resolution
- 6.9, 6.9, 2.5 micron
Feeder type
- Dual-geared feeder, reinforced for composite materials
Display
- 4.7-inch (11.9 cm) color touchscreen
Print head
- Dual extrusion print head with an auto-nozzle lifting system and swappable print cores
Nozzle diameters
- 0.25 mm, 0.4 mm, 0.6 mm, 0.8 mm
